36V 1000A Low Ripple Rectifier for Surface Treatment with PLC Touchscreen and RS485

Name: 36V 1000A Low Ripple Rectifier for Surface Treatment with PLC Touchscreen and RS485
Brand: Xingtongli
Price: 5000 USD

Buy cheap 36V 1000A Low Ripple Rectifier for Surface Treatment with PLC Touchscreen and RS485 product

Certification : CE ISO9001

Model Number : GKD36-1000CVC

MOQ : 1pcs

Delivery Time : 5-30 working days

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Price : 5000-6000$/unit

Supply Ability : 200 Set/Sets per Month

Place of Origin : China

Brand Name : Xingtongli

Packaging Details : strong plywood standard exporting package

Contact Now

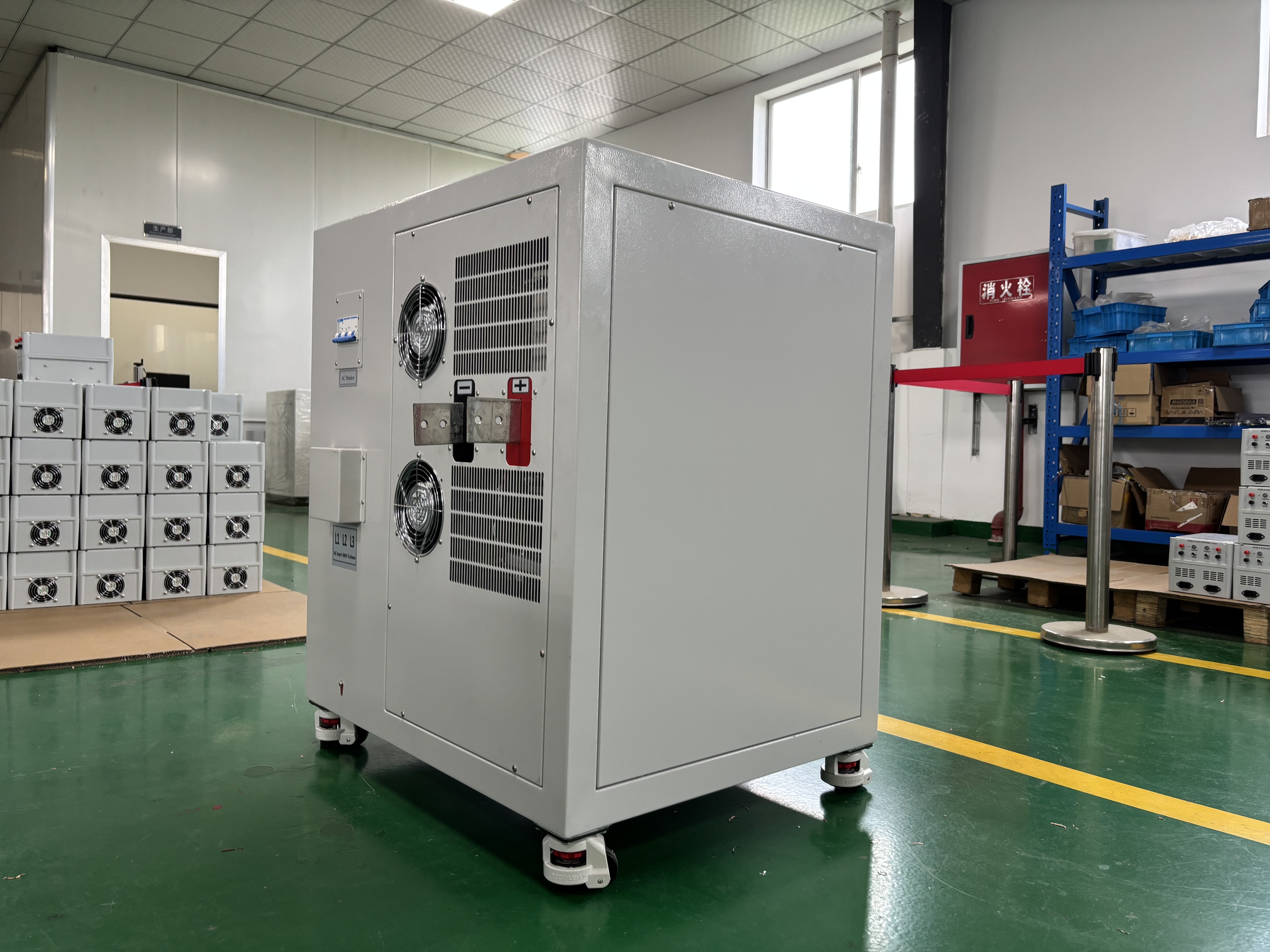

36V 1000A Low Ripple Rectifier for Surface Treatment with PLC Touchscreen and RS485

The 36V 1000A low ripple rectifier is designed for demanding surface treatment and electrochemical applications requiring precise and highly stable DC power. It features 380V three phase AC input, air cooling, and local PLC touchscreen control with RS485 communication for convenient operation and system integration. With ripple ≤1%, independently adjustable voltage and current, and an enhanced 1320mF filtering capacitor, the rectifier provides excellent output stability and fast load response with a response time of ≤30ms. It is ideal for precision electroplating, anodizing, metal finishing, and other surface treatment processes.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-36V continuously adjustable
- Current: DC 0-1000A continuously adjustable
- Power: Max 36KW (36V *1000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
